The Quik-Cap has 2 integrated bipolar leads for vertical and horizontal EOG (VEOG, HEOG).

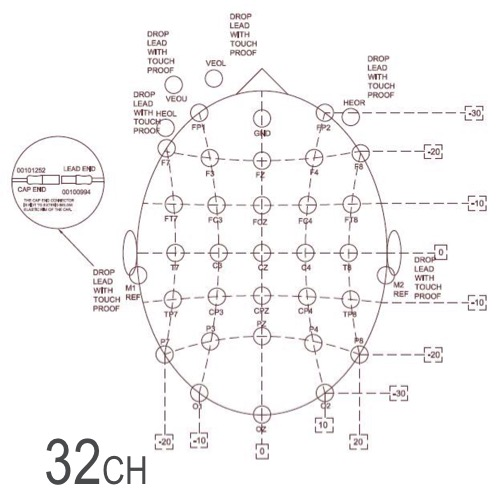

The cap needs an adapter to connect it to the SynAmps 1 or any other amplifier. The layout of the cap is according to the extended 10/20 system.
| EEG Channels | 32,64 |
| Bipolar Channels | 2 |
| Size | Newborn, Infant, Child, Medium, Large |
| Electrode Material | Ag/AgCl – sintered |
| Method of Application | Gel, QuikCell |
| Ground Electrode | AFz |

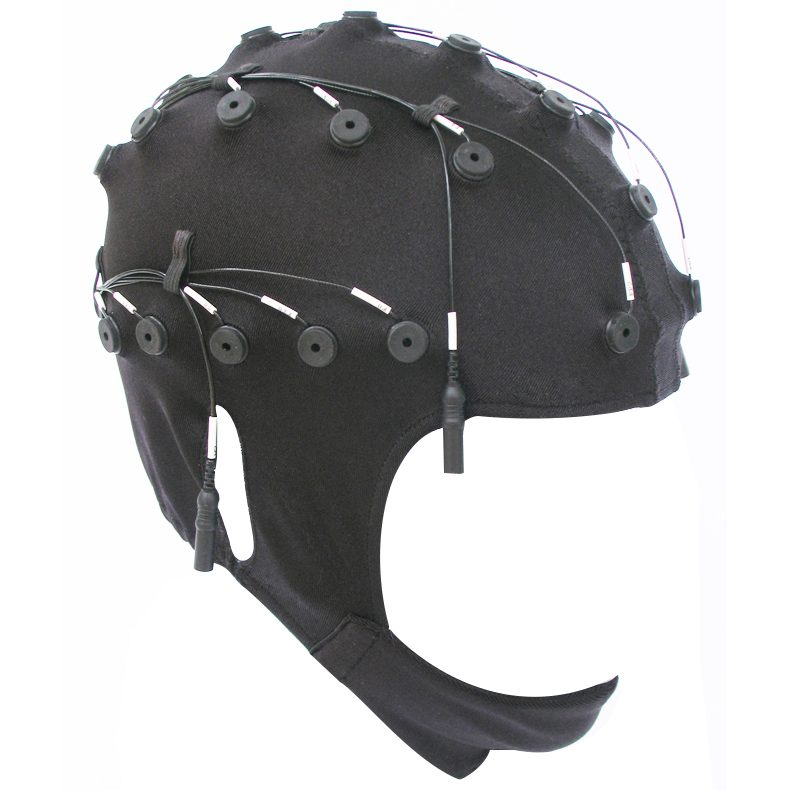

Quik-Caps to provide speedy, consistent application of up to 256 electrodes. Quik-Caps are manufactured of highly elastic breathable Lycra material with soft neoprene electrode gel reservoirs for enhanced patient comfort. All electrodes are placed according to the International 10-20 electrode placement standard.
Quik-Caps are available in a variety of electrode configurations from 12 to 256 channels as well as in different sizes to meet every lab requirement.
Quik-Caps to provide speedy, consistent application of up to 256 electrodes. Quik-Caps are manufactured of highly elastic breathable Lycra material with soft neoprene electrode gel reservoirs for enhanced patient comfort. All electrodes are placed according to the International 10-20 electrode placement standard.
Quik-Caps are available in a variety of electrode configurations from 12 to 256 channels as well as in different sizes to meet every lab requirement.
